[High-spec, high-performance DAC and headphone amplifier]
This D/A converter and headphone amplifier features an XMOS XU208 USB receiver and supports high-resolution audio inputs up to DSD512 (22.5MHz)*ASIO native and PCM 768kHz/32-bit.
It features four digital inputs (USB, optical digital, coaxial digital, and Bluetooth), an analog RCA output, and a headphone output, allowing it to function as a DAC, preamp, and headphone amplifier.
It uses the ES9038Q2M for D/A conversion and the high-end CSR8675 for the Bluetooth receiver.
By using Burr-Brown's OPA1612 op amp and other high-quality components designed specifically for audio, it delivers superior sound quality, leveraging the performance of these high-spec ICs.

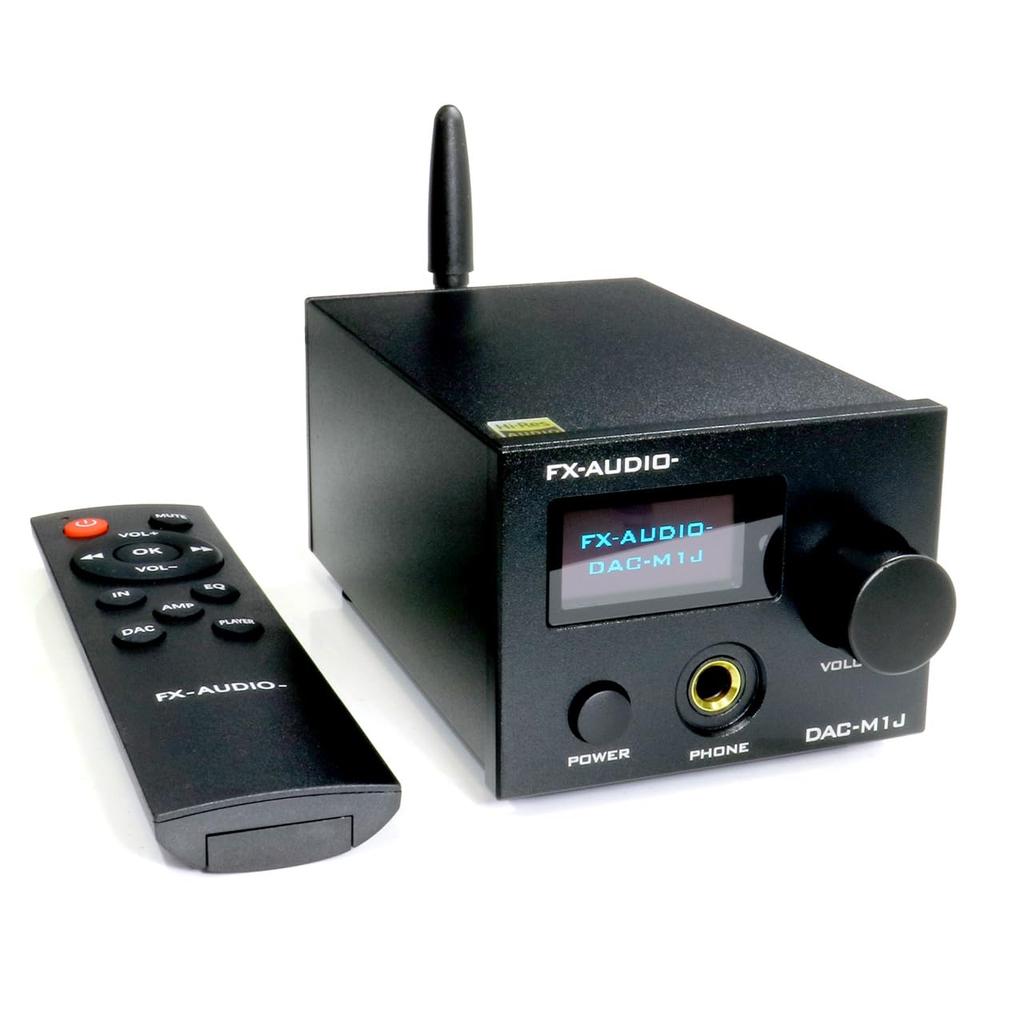

It features a front-panel OLED display and can be operated with the included remote control.
The RCA output is volume-linked, allowing it to be used as a preamp, and it can also be used as a Bluetooth receiver for wireless connection with non-Bluetooth devices.
[Notes]
*The product warranty period is 6 months from the date of purchase.
*Batteries are not included with the remote control; please purchase them separately. (Two AAA batteries)
*Due to the OS specifications, native playback on macOS is limited to DoP, with DSD128 (5.6MHz) being the maximum.
*This product requires a separate power supply. A separate AC adapter is required for use.
*Replacement of the operational amplifier is not covered by the warranty.
[Product Specifications]
Brand: FX-AUDIO
Model Number: DAC-M1J
Color: Black
Warranty Period: 6 months from the date of purchase

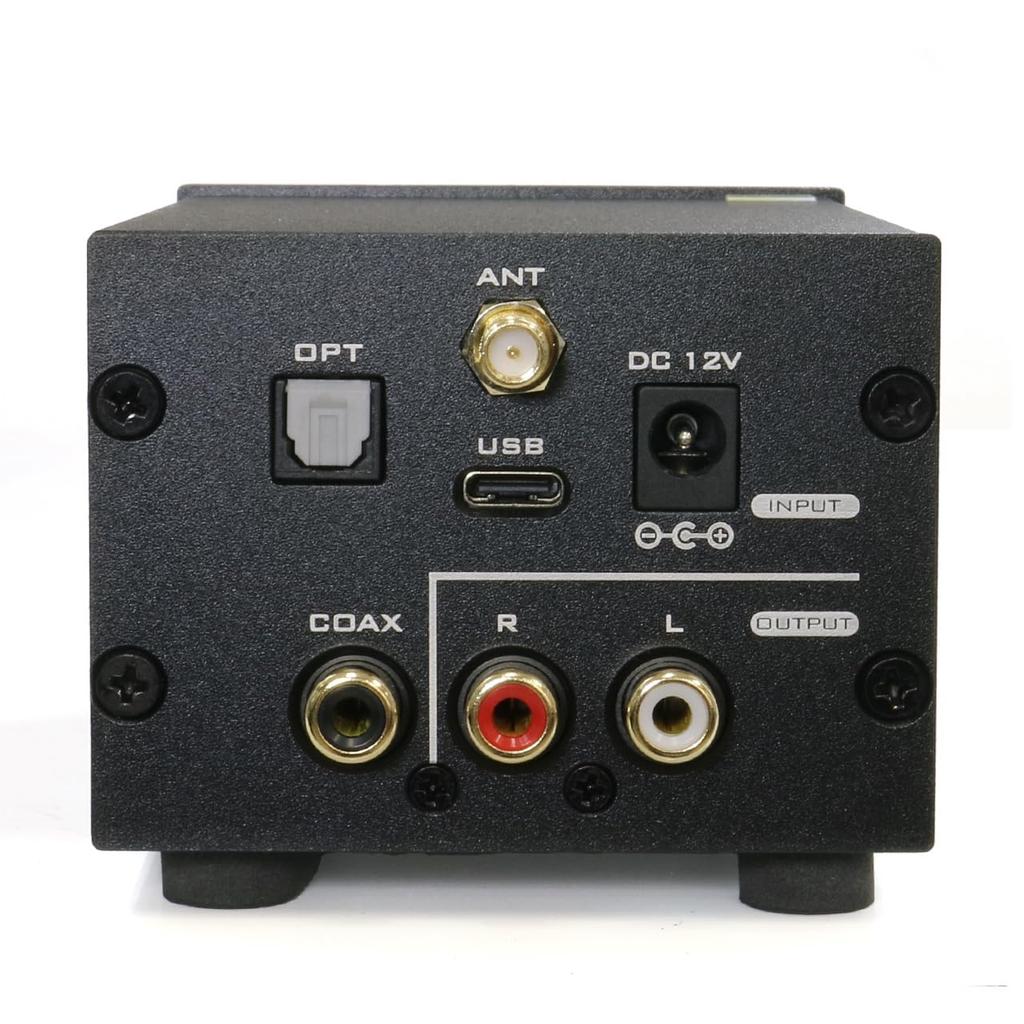

Digital Inputs: [4 Inputs]
USB (Type-C)
Optical Digital Terminal (Square) [TOS-LINK]
Coaxial Digital Terminal (RCA) [COAXIAL]
Bluetooth
Analog Output: Stereo RCA Terminal *Volume-Linked Output
Headphone Output: 6.3mm TRS Stereo Phone Jack
Supported DSD Input Formats: DSD512 (22.5MHz), DSD256 (11.2MHz), DSD128 (5.6MHz), DSD64 (2.8MHz) *ASIO Native
Supported PCM Input Formats: 44.1kHz/16bit - 768kHz/32bit *USB
44.1kHz/16bit - 192kHz/24bit *OPTICAL/COAXIAL
Bluetooth Version: 5.0
Bluetooth Codecs: SBC/AAC/aptX/aptX HD/aptX LL

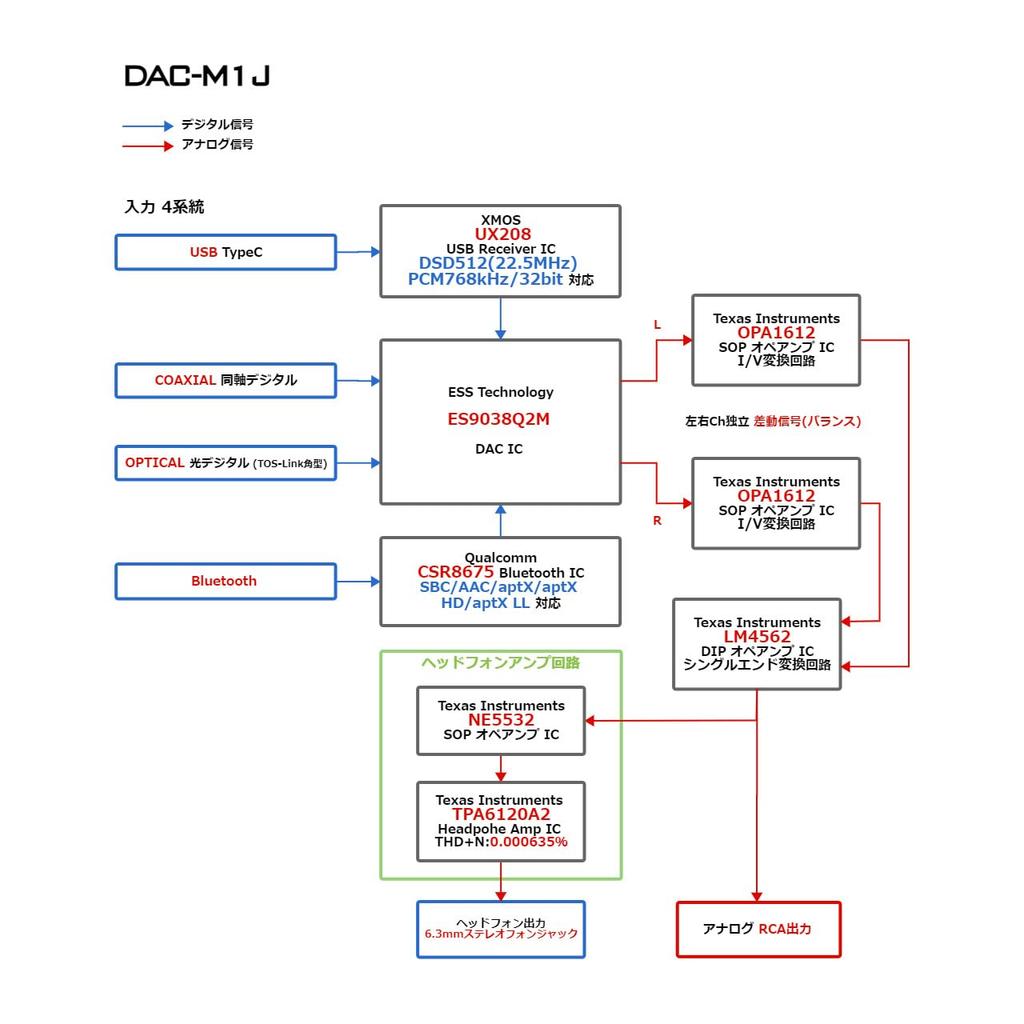

Bluetooth Receiver IC: Qualcomm CSR8675
USB Receiver IC: XMOS XU208
DAC IC: ESS Technology ES9038Q2M
Headphone Amplifier IC: Texas Instruments TPA6120A2
I/V Converter Op-Amp: Texas Instruments OPA1612 x 2
Single-Ended Converter Op-Amp: Texas Instruments LM4562 (DIP Socket)
Headphone Circuit Front-End Op-Amp: Texas Instruments NE5532
Functions: Input Switching, Remote Control Operation, MUTE, Automatic Output Switching and Simultaneous Output Setting, Filter Setting, Display Brightness Adjustment, Automatic Display Off
Power Supply: DC12V / Power Capacity: 1A or More (AC Adapter Sold Separately)
Power Connector: Outer Diameter 5.5mm, Inner Diameter 2.1mm (Center plus)

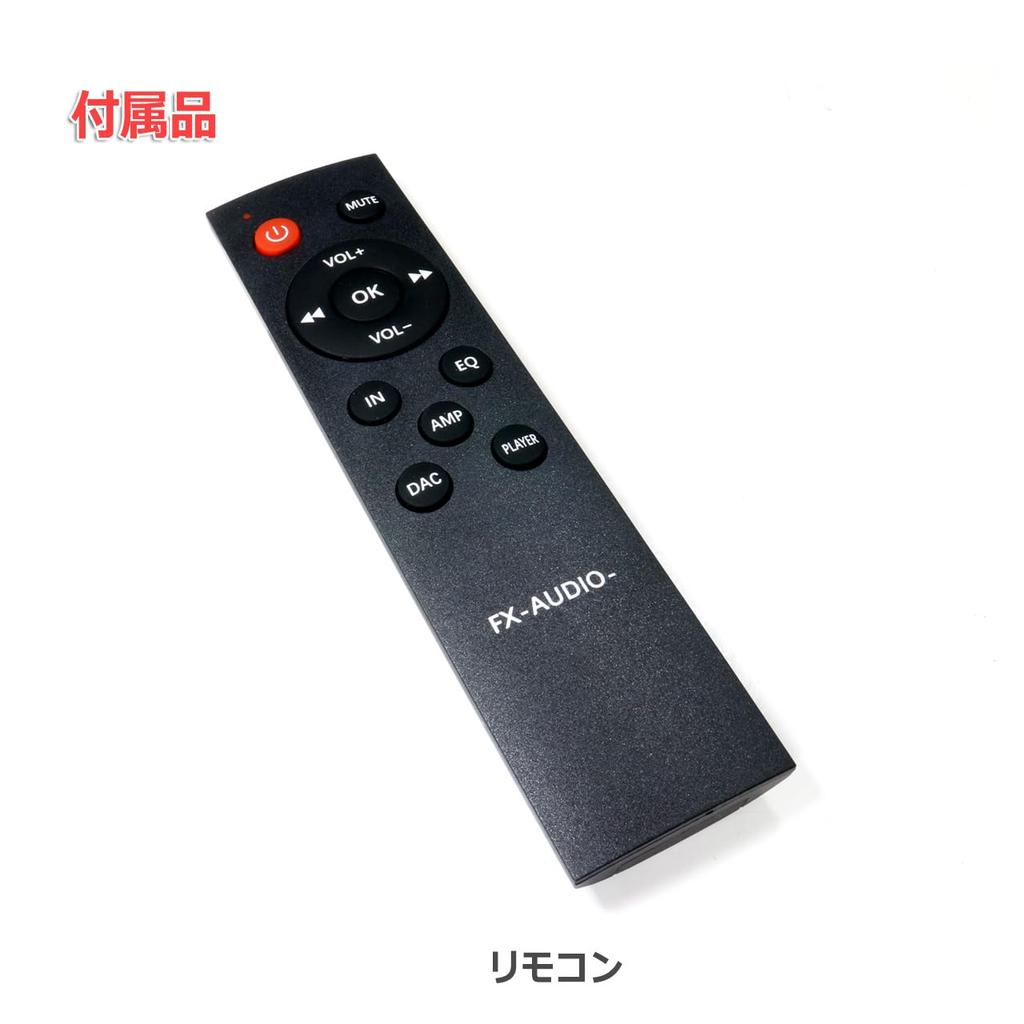

Accessories: Remote control, Bluetooth antenna, instruction manual
Size: 78mm W x 123mm D x 58mm H (excluding protrusions)
Weight: 382g
[Compatible OS]
Compatible OS: Windows 11/10/8 (8.1)/7 / Mac OSX 10.6 or later
*Due to OS specifications, native playback on MacOS is limited to DoP, and DSD128 (5.6MHz) is the maximum.
*Specifications and design may change without notice for product improvement reasons.
Equipped with XMOS "XU208"
Uses ESS Technology "ES9038Q2M"
High-performance operational amplifier
High-quality components used in the analog circuitry
High-performance headphone amplifier function thanks to a dedicated headphone amplifier IC
