Feature:
1. Widely used in the detection of soil , dry farming and water‑saving irrigation, accurate agriculture, forestry, geological prospecting, plant cultivation, water conservancy, environmental and other fields and the measurement of various particulate matter .
2. Equipped with data storage, waterproof probe, backlight display, time display, peak alarm, ergonomic design, fast measurement and other functions.
3. This soil detector has a 2.8in high-definition color screen, backlit display, and the measurement data is clear anytime and anywhere.
4. With 5000mA large-capacity lithium battery, long-lasting battery life, the sensor combines the 3 parameters of soil moisture content, electrical conductivity and temperature.
5. Can be used for the integration of water and fertilizer solutions and the conductivity of other nutrient solutions and substrates.
6. This soil moisture detector is high‑accuracy, quick response, good interchangeability, and the probe plug‑in design to accurate measurement and performance.
Specification:
Item Type: Soil Moisture Meter
Material: ABS, alloy
Uses: Used in farmland planting, fruit and vegetable planting, gardening, greenhouse planting, cultivation, etc.
Soil Detector:
Power Supply Mode: Battery power supply
Display Mode: 2.8in LCD screen
Data Storage: 100W data
Charging Time: 8H
Connectable Equipment: 1-4 equipment combinations
Working Environment: Temperature -10℃~50℃ humidity <95%RH no condensation
Communication Protocol: For RTU protocol
Working Voltage: 4.2V
Standby Time: More than 8h continuous
Battery Type: 2 x 18650 lithium battery (not included)
Size: Approx. 209 x 100 x 36mm / 8.2 x 3.9 x 1.4in
Temperature And Moisture Conductivity Sensor:
Power Supply (default): 5-30V
Maximum Power Consumption: ≤0.2W
Working Temperature: -40℃~+60℃
Soil Conductivity Parameters: Range: 0-20000us/cm
Resolution: 0-10000us/cm within 10us/cm; 100000-20000us/cm within 50us/cm
Accuracy: ±3% Within 0-10000 Us/cm: ±5% within 100000-20000us/cm
Soil Moisture Parameters: Range: 0-100%
Resolution: 0.1%
Accuracy: 2% within 0~50%; 3% within 50~100%
Soil Temperature Parameters: Range: -40℃~80℃
Resolution: 0.1℃
Accuracy: ±0.5℃
Response Time: <1s
Level: IP68
Probe Material: Special electrode for corrosion
Default Cable Length: Approx. 2meters / 6.6ft
Input : RS485
Temperature and Moisture Conductivity Sensor Size: Approx. 45mm / 1.8in
65mm / 2.6in
14mm / 0.6in
70mm / 2.8in

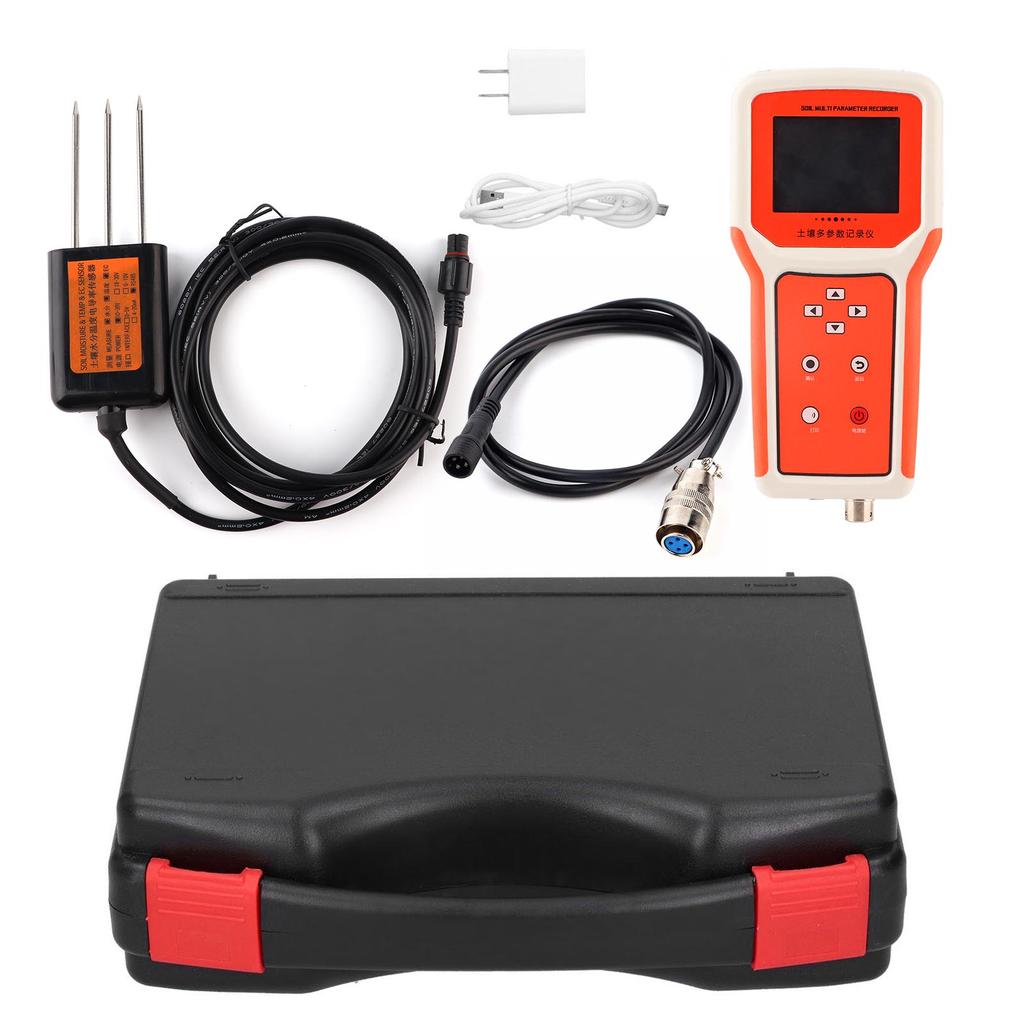

Package List:
1 x Sensor
1 x Detector
1 x Connection Line
2 x Connection Terminal
1 x USB Charging Cable
1 x Plug
1 x Plastic Box
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
