Label:Yes
**Quality Material**: Made from ABS, this sensor is sturdy. Featuring a 12-magnet assist design, it accurately detects pedal motion to provide powerful riding assistance.
**Portable Design**: Compact (5.4 × 4.4 cm(2.13 × 1.73 in)) and lightweight, the sensor is shockproof. Easily fits various electric bikes, making it an essential accessory for enhanced riding efficiency.
**High Performance Assurance**: Precision machining and quality assembly ensure stable performance. Provides accurate and consistent speed feedback for precise assist response, resulting in a smoother and more stable ride.
**Easy Installation**: Developed for pedal assist systems, it offers quick and easy setup. With standard wiring definitions (Red: 5V / Green: Signal / Black: GND), simply align with the crank position and connect to the controller for fast use.
**Wide Compatibility**: Suitable for most electric bikes on the market, ideal for commuting and cruising. The 1-meter cable length accommodates diverse installation needs, enhancing your electric biking experience.

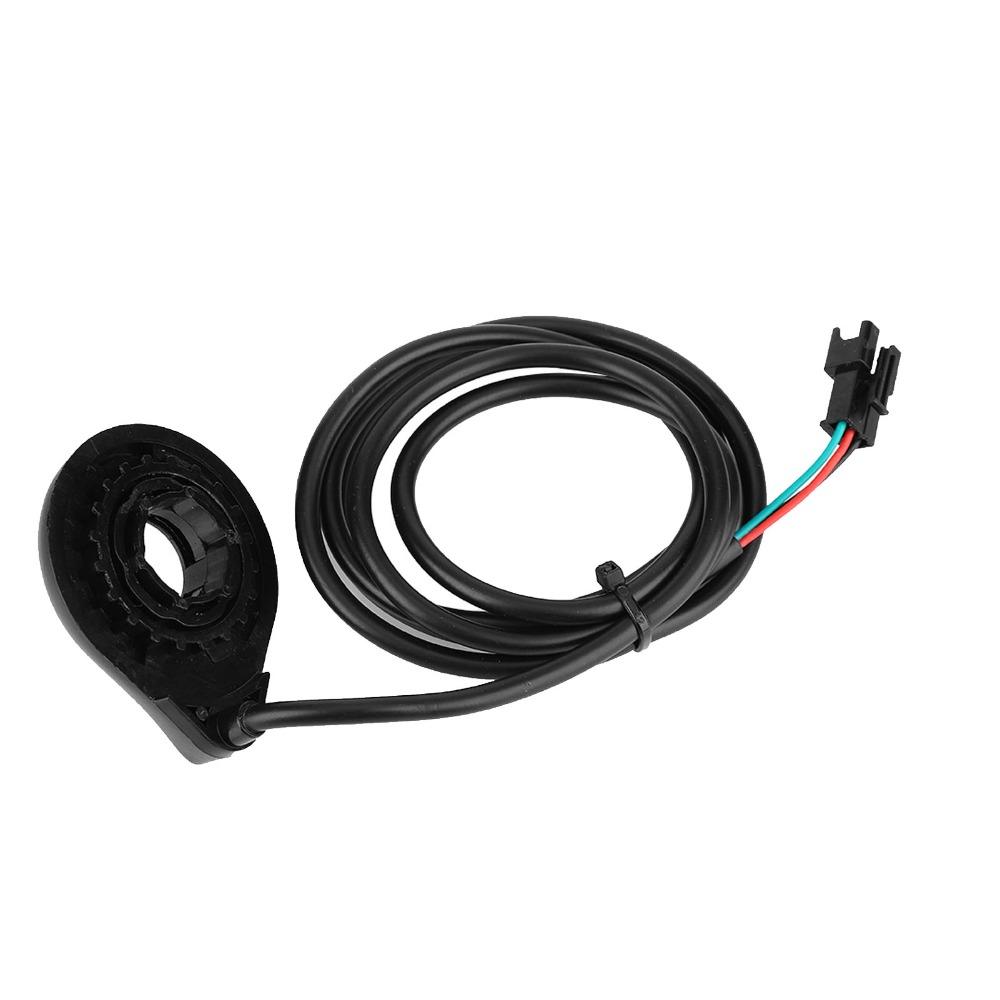

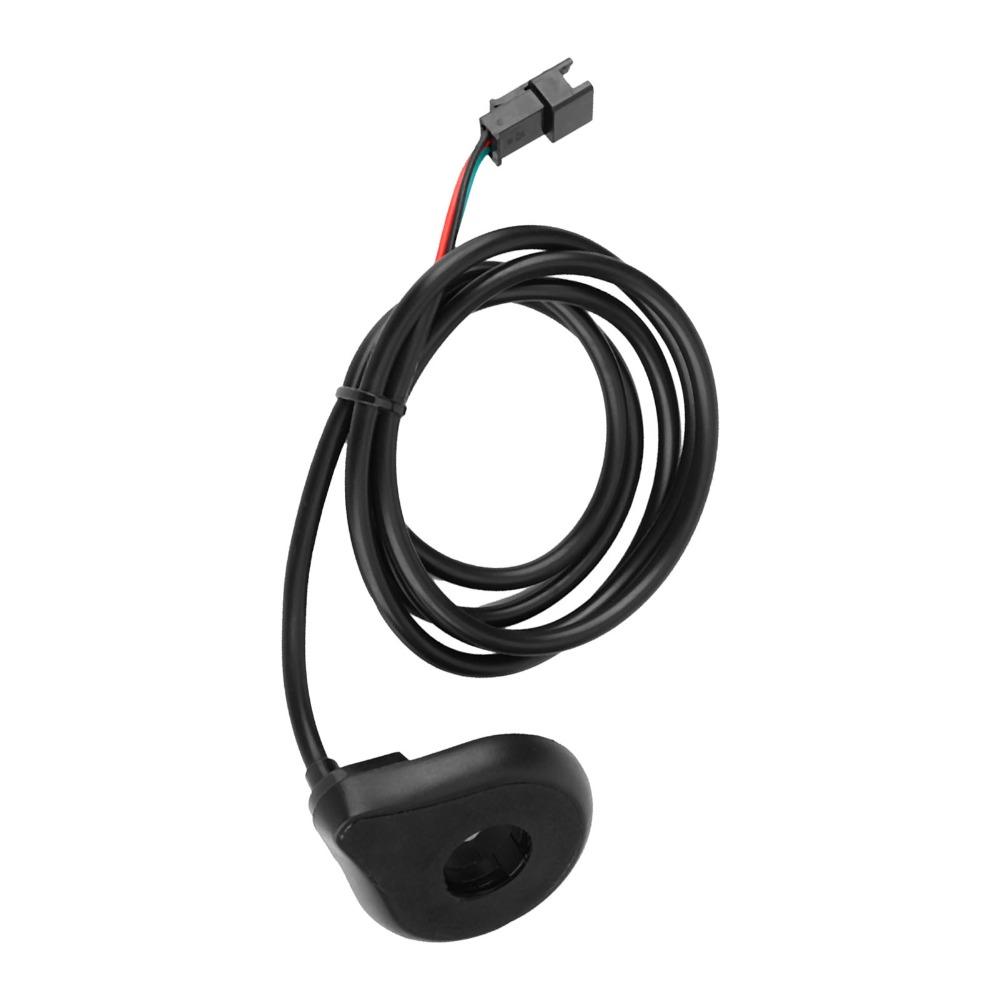

Item Type:Bike Pedal Assist Sensor
Material: ABS
Magnets: 12

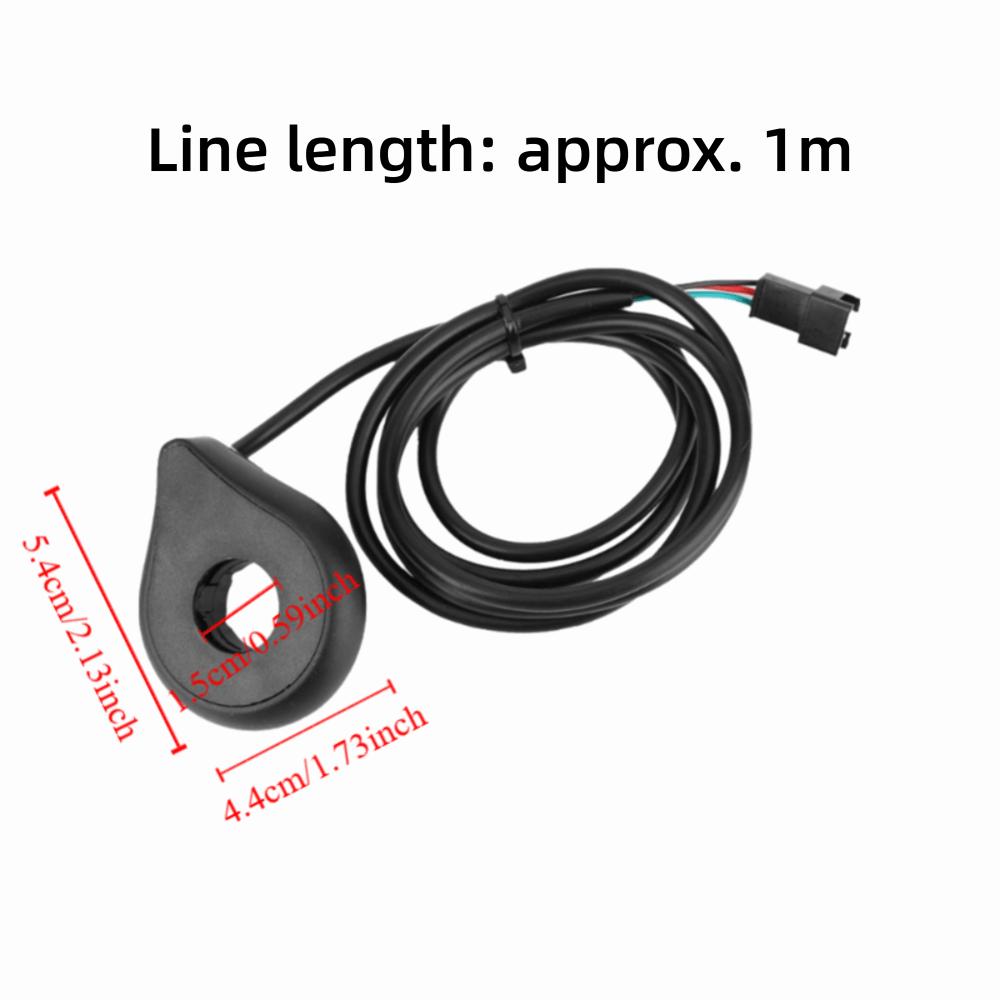

Product Size:5.4×4.4cm(2.13×1.73in)
Inner Ring Diameter:1.5cm(0.59in)
Line length: Approx. 1m
Product Thickness:10mm(0.39in)

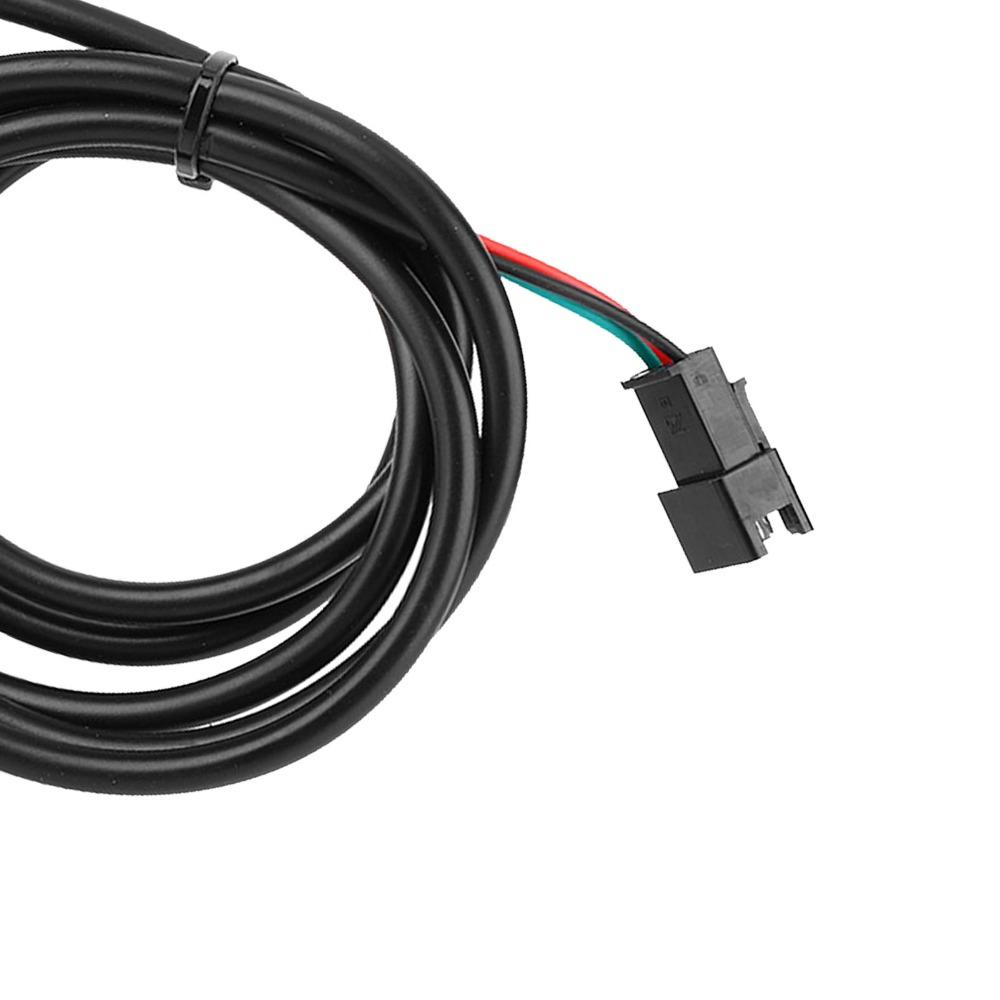

Line Color Definition:
1. Red 5V
2. Green power signal
3. Black GND
Installation and use:

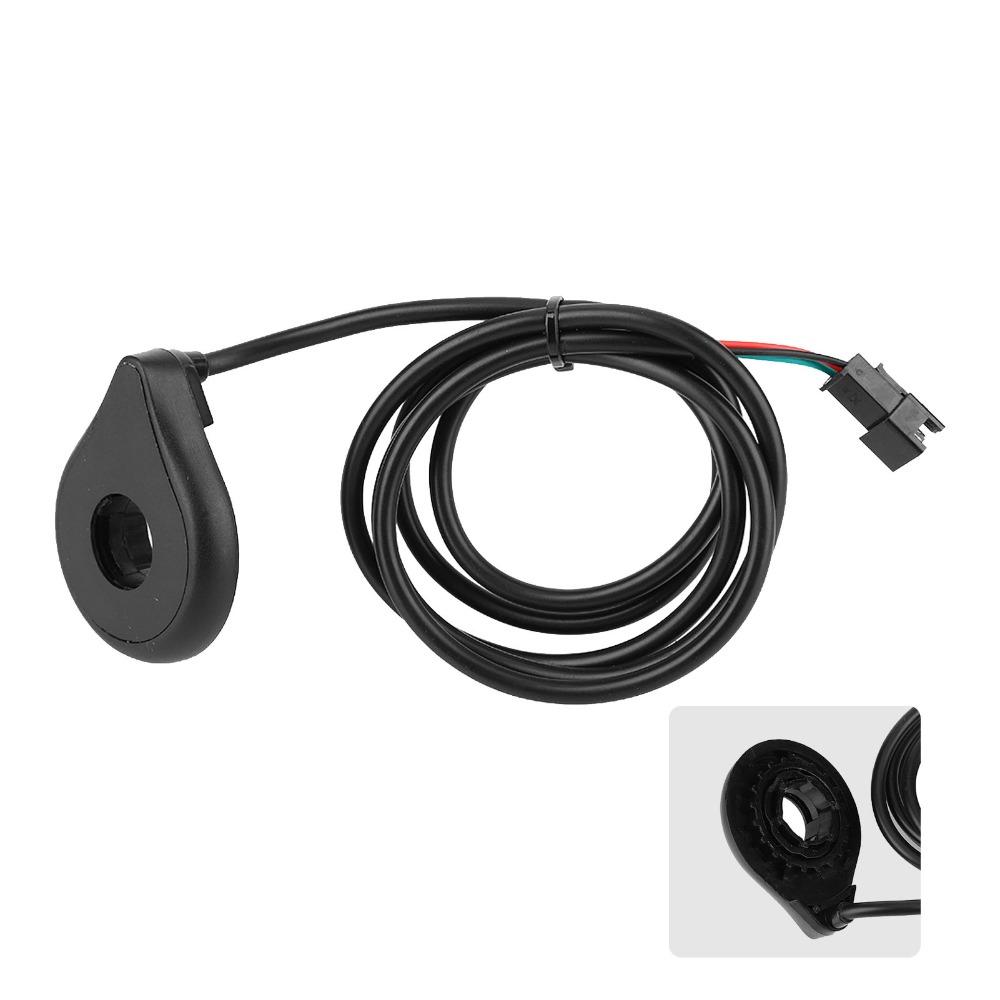

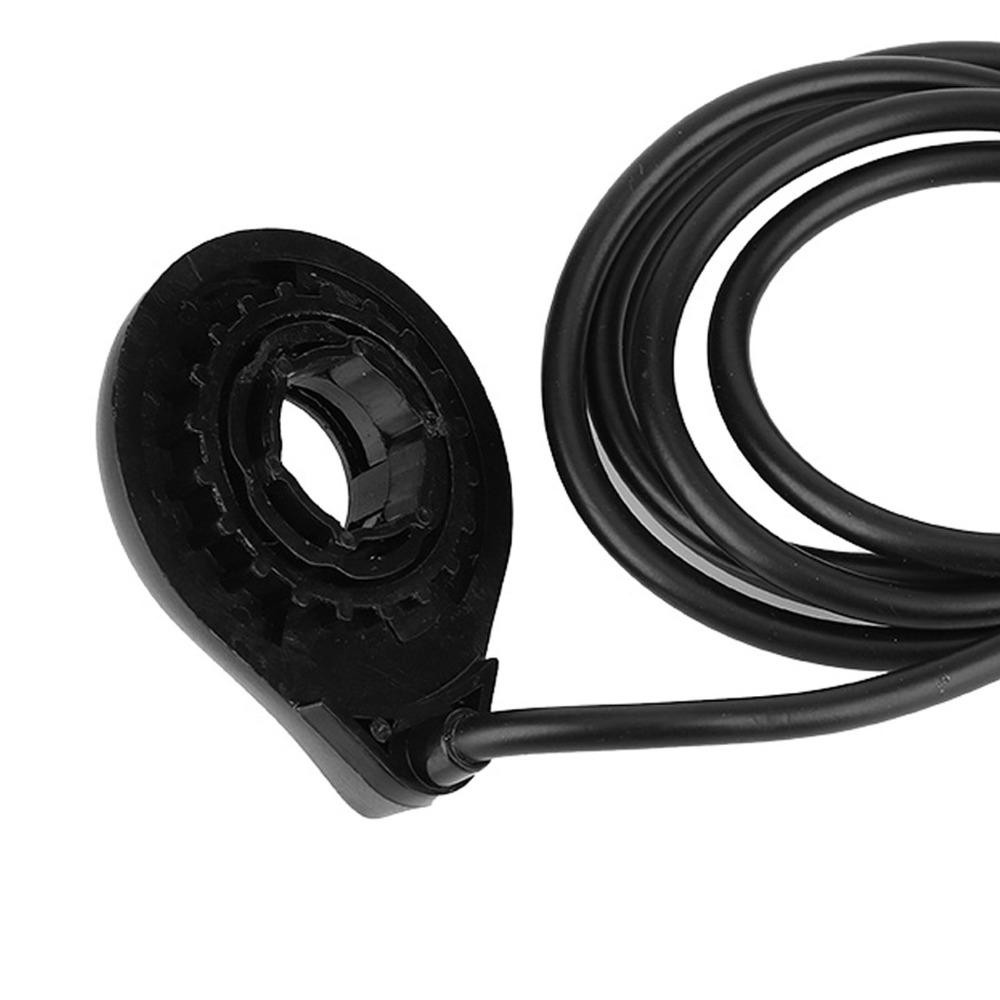

The middle shaft card slot rotates following the middle shaft, and the outer casing sensor is fixed.
There is no need to disassemble the middle shaft, as long as the inner ring is caught in the middle shaft and the outer casing is fixed to the frame, it is convenient to install, stable and reliable.
Right side installation: Step on the output pulse signal and reverse the step to not output.
Left side installation: step forward output pulse signal, reverse step will not output.
Package list:1 * Bike Pedal Assist Sensor
Notes:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
