Product Introduction
[Basic Specifications]
Length: 407mm.
Width: 186mm.
Height: 159mm.
Wheelbase: 257mm.
Tire Width/Diameter: 27mm/69mm (Front and Rear).
Bathtub-type Frame.
Drivetrain: Longitudinal Motor Shaft-Driven 4WD.
Further/Far-Rear Resin 4-Bevel Differentials.
3-Piece Steering Tie-Rod.
4-Wheel Double Wishbone Suspension.
Further/Far-Rear Friction Dampers.
Gear Ratio: 9.58:1.
540-Type Motor.
Includes ESC (Electronic Speed Controller) for reverse driving.
[Items to be Sold Separately (Not Included)]
4 AA Batteries for Transmitter.
Use only the specified charging equipment to charge the battery. Usable chargers vary depending on the battery type and capacity.
Using unapproved charging equipment is extremely dangerous and may result in overheating, fire, or explosion.
Always charge in a clear, visually accessible area.
*This product does not use fuel.
*This product does not include fuel.
*This product does not include paint.
*This product does not include adhesive.
Safety Warning
Drive in a large, safe area, such as an RC car circuit.
Never drive on roads.
Do not drive in crowded areas, parks, or near small children.
Do not drive in narrow spaces or indoors.
Do not drive in schools, hospitals, residential areas, or other areas where it may disturb others.
Do not drive at night or early in the morning.

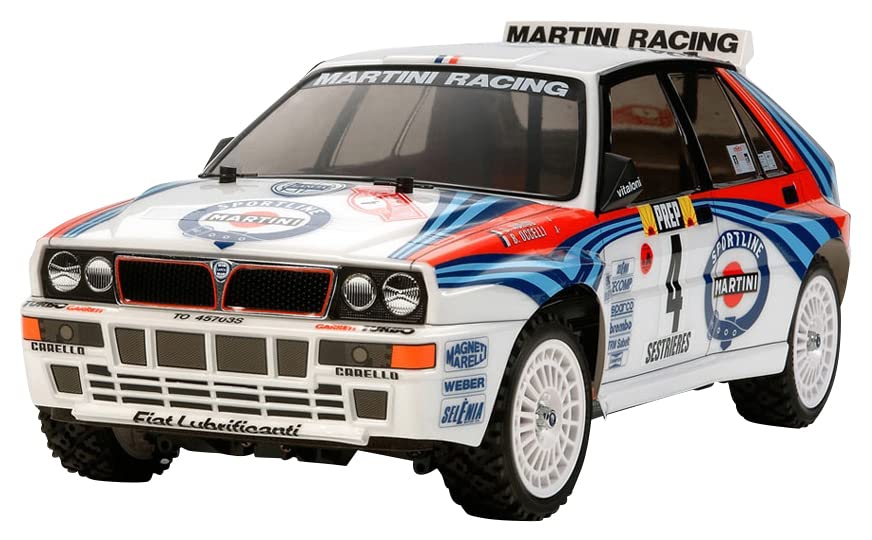

This is a pre-assembled electric radio-controlled car of the Lancia Delta Integrale, the 1992 World Rally Championship champion, winning eight races. The car's attractive, straight-lined, two-box, four-door hatchback style and edgy front and rear blister fenders are realistically recreated in polycarbonate.
The body, featuring numerous sponsor markings, including the familiar Martini stripes from the motorsports scene, gives it a perfect rally car vibe. The chassis is the shaft-driven 4WD TT-02. Rally block tires are mounted on wheels that are faithful to the actual car, allowing for dynamic driving on both on-road and flat dirt surfaces.
The shaft-driven 4WD TT-02 chassis features a well-balanced design with the battery mounted longitudinally on the left and the motor on the right, providing excellent handling stability. The suspension is a four-wheel independent double wishbone setup. The front and rear sealed gearboxes are equipped with resin four-pinion differential gears that generate smooth differentials.
The wheel hubs are designed to resemble brake discs, and the front bumper support is modeled after the bumper of a real racing kart, adding plenty of fun to the car. By rearranging parts, you can choose from two wheelbases, two vehicle heights, and two treads, and you can also configure the motor mount to create a wide range of 10 gear ratios.

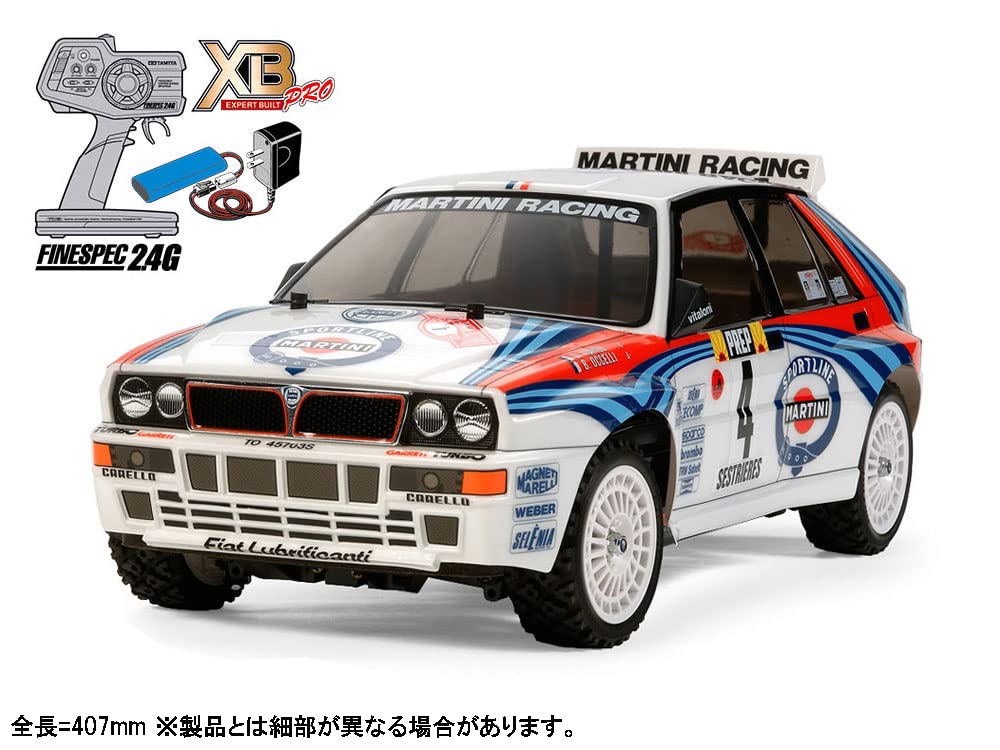

The set includes not only the completed chassis, but also a wheel-trigger type transmitter that is ideal for controlling the car, a 7.2V battery for running, and a charger. The RC mechanism uses a 2.4GHz radio control set that eliminates the need for crystal replacement or band adjustment, making it easy to share with multiple units.
